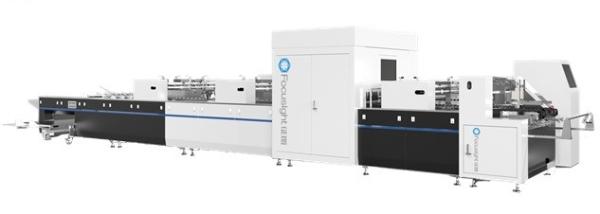

Focusight Rigid Box Production line Inspection System for Bigger Size 1100mm Cartons
PROPOSAL
BIG SHEET HIGH SPEED QUALITY INSPECTION MACHINE FS-SHARK-N1100
Technical Part
Product Description
What: The Focusight Inspection Machine will precisely find out the
defects of printing on presswork and reject the bad ones from the
good ones automatically.
How: The Focusight cameras scan some good presswork as “STANDARD”
and then while the rest of the printed jobs are inspected be
scanned one by one and compared with the "STANDARD", any
mal-printed or defective ones will be rejected automatically by the
system. It detects every type of printing or finishing fault –
color misregistration, color variations, hazing, misprints, defect
in the text, spots, splashes, varnishing missing & misregistration,
embossing missing & misregistration, laminating problems, die-cut
problems, barcode problems, Holographic Stripe, cure & cast and
many other printing problems.
Object of Inspection
Form 1: the kind of Detectable Objects on Big Sheet
Note : ( ★ Detectable; ☆ Partially Detectable; △ Undetectable )
Product Type | FS-SHARK-N1100-P1 | FS-SHARK-N1100-P2 | FS-SHARK-N1100-P2N1 |
Applicable Presswork | FBB, SBS paperboard, Offset paperboard, Coated free sheet paper , Gold or Silver coated paperboard, Laser paperboard | ||
Regular Printing | ★ | ★ | ★ |
Color Misregistration & Variation | ★ | ★ | ★ |
Die Cutting Misregistration | ★ | ★ | ★ |
Foil Stamping | ★ | ★ | ★ |
Holographic Stripe | ★ | ★ | ★ |
Variable Barcode & QR code | ★ | ★ | ★ |
Laminating | △ | ★ | ★ |
Vanishing Misregistration | △ | ★ | ★ |
Vanishing Missing / Scratch | △ | ★ | ★ |
Convex Oil Misregistration | △ | ★ | ★ |
Convex Oil Missing / Scratch | △ | ★ | ★ |
Embossing Mis registration | △ | ★ | ★ |
Silkscreen | △ | ★ | ★ |
Scratch | ☆ | ★ | ★ |
Reverse Side big defect | ★ | ★ | ★ |
Technical Parameter
Form 2: Performance Parameters of Inspection System
Product Type | FS-SHARK-N1100-P2N1 |
Inspection FOV | 1100mm (Width) |
Imaging Resolution (mm) | Front Imaging Resolution (Regular Printing Side): 0.15mm * 0.12mm
(7k color camera) |
Regular Printing (when the defect contrast is over grade 40) | 1. Minimum Inspection Area of Regular Defects, such as Printing
Missing, Dirty Spot and stuff like that: ≥0.3 mm 2 |
Form 3 : Performance Parameters of Transportation Platform
Item | Parameter |
Max. Transportation Speed | 220m / min |
Max. Sheet Dimension (W * L) | 1100mm × 900mm |
Min. Sheet Dimension (W * L) | 400mm × 300mm |
Suggested carton Gram Weight | 200 ~ 650g / ㎡ |
Suggested corrugate Weight | B, EF type |
Total Mechanical Platform Dimension (L * W * H) | 9500 mm × 3300 mm × 2000 mm |
Total power | 28kw |
Total Weight | 8 Tons |
