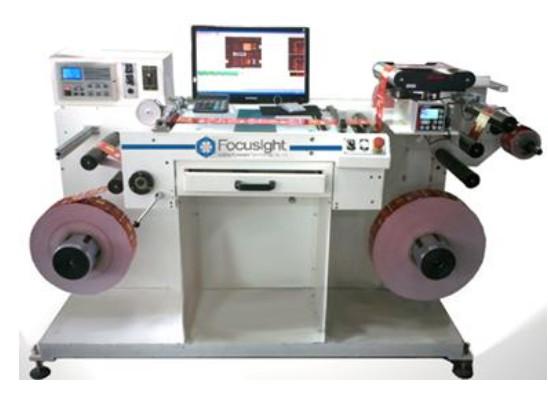

    Labels & Tags Quality Control , 10KW Focusight Inspection Machine

    Ask Lasest Price
    Brand Name : FOCUSIGHT
    Model Number : FS-GECKO-200
    Certification : ISO9001/CE
    Price : Negotiable
    Supply Ability : 20 Machines/Month
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    Labels & Tags Quality Control , 10KW Focusight Inspection Machine

    Label Quality Control Inspection Machine, for 200mm with Labels & Tags

    Product Technical Specifications —FS200-GECKO-P2N2

    Machine Configuration

    Product Name Product Model Paper Adaptability
    Single sided Inspection Machine FS200-GECKO White card and paper

    Machine configuration and function parameters

    Product Type

    Type Product Type Description
    Tag 3 or More Gray card and White card tags

    Machine Configuration

    Content Configuration Details Qty Functions Description √ / X
    Detection system configuration Positive Direct Station Imported high speed RGB color 4096 pixel Scan camera 1
    • Conventional printing defects
    • Die-cutting
    • Product code
    Imported optical imaging lens 1
    Dedicated strip light source 1
    High-speed image processing computer workstation (including high-speed image acquisition processing card) 1
    Front Oblique Station Imported high speed RGB color 4096 pixel Scan camera 1
    • Varnish biased, missing
    • Convex oil deviation missing
    • Embossing deviation
    Imported optical imaging lens 1
    Dedicated oblique light source 1
    High-speed image processing computer workstation (including high-speed image acquisition processing card) 1
    Reverse Direct Station Imported high speed RGB color 4096 pixel Scan camera 1
    • Conventional printing defects
    • Die-cutting
    • Product code
    Imported optical imaging lens 1
    Dedicated strip light source 1
    High-speed image processing computer workstation (including high-speed image acquisition processing card) 1
    Reverse Reflection Station Imported high speed RGB color 4096 pixel Scan camera 1
    • Convex oil deviation missing
    • Film bubble
    Imported optical imaging lens 1
    Dedicated Reflection light source 1
    High-speed image processing computer workstation (including high-speed image acquisition processing card) 1
    Detection software configuration Print inspection module dedicated visual inspection software FSCheck V2.1.1 1
    Mixed detection module 1 Mixed Code
    Defect detection statistics report 1 Document report that can count the types and quantities of defects
    Testing Equipment Dedicated dust-removing sealed electric cabinet for printing inspection 1 Protect the detection device and it's parts from the dust
    22 "LCD monitor and keyboard mouse 1
    Sound and light alarm device 1
    Rear Display 1
    Mechanical Transmission Platform Structure Configuration Suction Feeder 1
    Fish Scale Delivery 1
    Fish Scale Rejection Type 1
    Rejection Unit 1
    Electrical System 1

    Technical Parameters

    Type Parameter
    Max. Detection Speed 120m / min
    Maximum Detection Size 28mm Suction Head 120mm (W) * 120mm (L)
    90mm Suction Head 200mm (W) × 200mm (L)
    Minimum Detection size 28mm Suction Head 30mm (w) × 50mm (L)
    90mm Suction Head 120mm (W) × 120mm (L)
    Paper Weight 150 ~ 350g / ㎡
    FOV 220mm
    Imaging Accuracy (mm)

    Front imaging accuracy: 0.054mm * 0.075mm (4K camera)

    Front imaging accuracy: 0.054mm * 0.15mm (4K camera)

    Reverse imaging accuracy: 0.054mm * 0.075mm (4K camera)

    Reverse imaging accuracy: 0.054mm * 0.15mm (4K camera)

    Conventional defect detection (when the defect contrast is greater than 40)

    1. Minimum detection area for defects such as missed prints and dirty spots: ≥0.15 mm²

    2. Overprint deviation detection: ≥0.2mm

    3. Die cutting deviation detection: ≥0.2mm

    4. Cable: horizontal or vertical cable with width more than 0.1mm wide vertically or 0.2mm wide horizontally, length greater than 15mm, and contrast greater than 40 levels can be detected;

    5. Local color difference detection ΔE≥3ΔELab

    Mechanical Dimension 4.4m × 2.1m × 1.49m (L * W * H) standard
    Equipment Area 5m × 3m × 1.8m (L * W * H)
    Weight 2 Ton
    Total Power

    10KW
