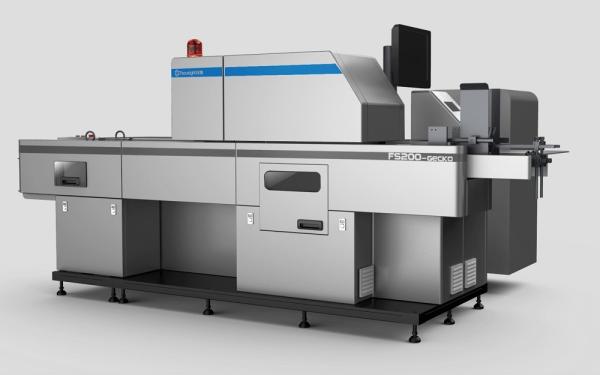

    120m / Min Packaging Vision Systems , 10KW Focusight Inspection Machine

    Ask Lasest Price
    Brand Name : FOCUSIGHT
    Model Number : FS-GECKO-200
    Certification : ISO9001/CE
    Price : Negotiable
    Supply Ability : 20 Machines/Month
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    120m / Min Packaging Vision Systems , 10KW Focusight Inspection Machine

    Focusight Inspection System for Small 200mm Size White and Grey Card Battery Tags


    Product Technical Specifications

    —FS200-GECKO-P2N2

    1. Machine Configuration

    Product NameProduct ModelPaper Adaptability
    Single sided Inspection MachineFS200-GECKOWhite card and paper

    1. Machine configuration and function parameters
    TypeProduct TypeDescription
    Tag3 or MoreGray card and White card tags

    2.1 Machine configuration


    ContentConfiguration DetailsQtyFunctions Description√/X
    Detection system configurationPositive Direct StationImported high speed RGB color 4096 pixel Scan camera1
    • Conventional printing defects
    • Die-cutting
    • Product code
    Imported optical imaging lens1
    Dedicated strip light source1
    High-speed image processing computer workstation (including high-speed image acquisition processing card)1
    Front Oblique StationImported high speed RGB color 4096 pixel Scan camera1
    • Varnish biased, missing
    • Convex oil deviation missing
    • Embossing deviation
    Imported optical imaging lens1
    Dedicated oblique light source1
    High-speed image processing computer workstation (including high-speed image acquisition processing card)1
    Reverse Direct StationImported high speed RGB color 4096 pixel Scan camera1
    • Conventional printing defects
    • Die-cutting
    • Product code
    Imported optical imaging lens1
    Dedicated strip light source1
    High-speed image processing computer workstation (including high-speed image acquisition processing card)1
    Reverse Reflection StationImported high speed RGB color 4096 pixel Scan camera1
    • Convex oil deviation missing
    • Film bubble
    Imported optical imaging lens1
    Dedicated Reflection light source1
    High-speed image processing computer workstation (including high-speed image acquisition processing card)1
    Detection software configurationPrint inspection module dedicated visual inspection software FSCheck V2.1.11
    Mixed detection module1Mixed Code
    Defect detection statistics report1Document report that can count the types and quantities of defects
    Testing EquipmentDedicated dust-removing sealed electric cabinet for printing inspection1Protect the detection device and it’s parts from the dust
    22" LCD monitor and keyboard mouse1
    Sound and light alarm device1
    Rear Display1
    Mechanical Transmission Platform Structure ConfigurationSuction Feeder1
    Fish Scale Delivery1
    Fish Scale Rejection Type1
    Rejection Unit1
    Electrical System1

    2.2 Technical Parameters


    TypeParameter
    Max. Detection Speed120m/min
    Maximum Detection Size28mm Suction Head120mm(W) * 120mm(L)
    90mm Suction Head200mm(W)×200mm(L)
    Minimum Detection size28mm Suction Head30mm(w)×50mm(L)
    90mm Suction Head120mm(W)×120mm(L)
    Paper Weight150~350g/㎡
    FOV220mm
    Imaging Accuracy (mm)

    Front imaging accuracy: 0.054mm * 0.075mm (4K camera)

    Front imaging accuracy: 0.054mm * 0.15mm (4K camera)

    Reverse imaging accuracy: 0.054mm * 0.075mm (4K camera)

    Reverse imaging accuracy: 0.054mm * 0.15mm (4K camera)

    Conventional defect detection (when the defect contrast is greater than 40)

    1. Minimum detection area for defects such as missed prints and dirty spots: ≥0.15 mm²

    2. Overprint deviation detection: ≥0.2mm

    3. Die cutting deviation detection: ≥0.2mm

    4. Cable: horizontal or vertical cable with width more than 0.1mm wide vertically or 0.2mm wide horizontally, length greater than 15mm, and contrast greater than 40 levels can be detected;

    5. Local color difference detection ΔE≥3ΔELab

    Mechanical Dimension4.4m×2.1m×1.49m(L*W*H)standard
    Equipment Area5m×3m×1.8m(L*W*H)
    Weight2 Ton
    Total Power10KW
